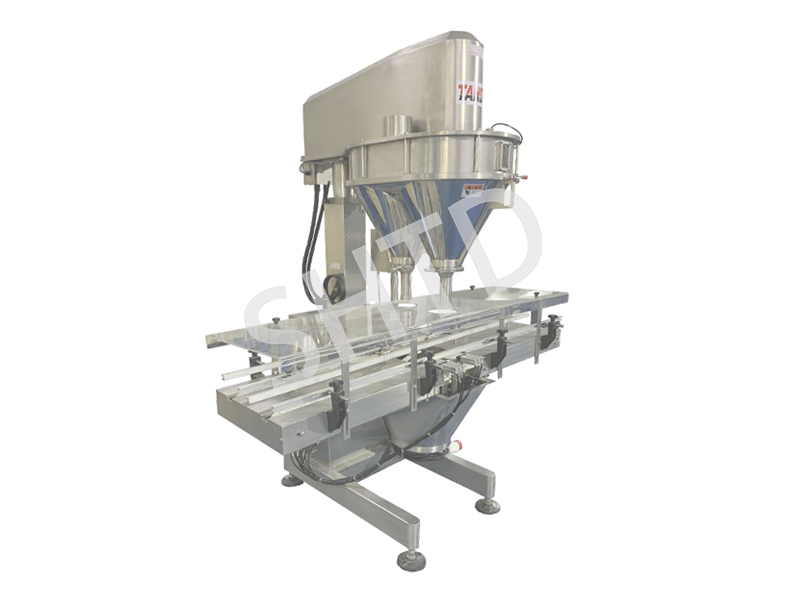

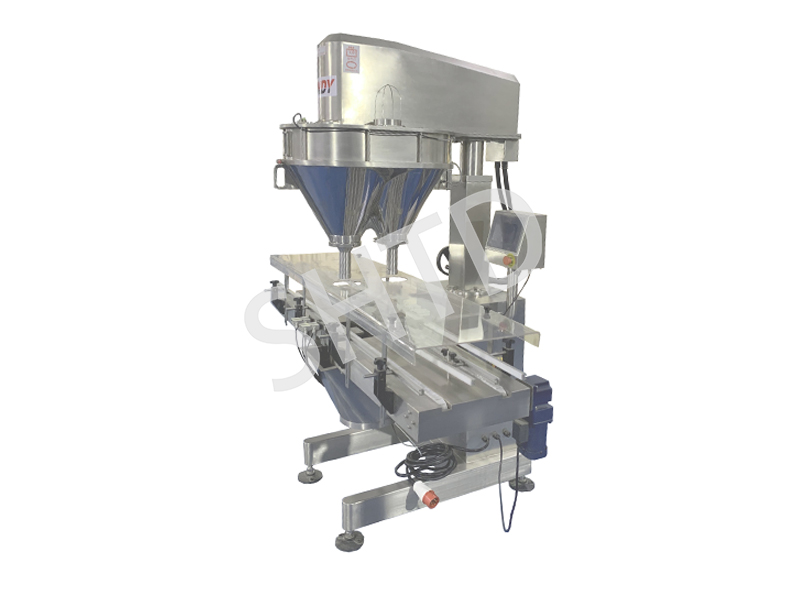

Automatic auger filling machine ( 2 lines 2 fillers )
This machine is a complete, economical solution to your filling production line requirements. It is
available for dosing and filling powders, granules. It consists of filling head, an independent
motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories
to reliably move and position containers for filling, dispense the required amount of product, then
quickly move the filled containers away to other equipment in your line (e.g. cappers, labellers, etc.).
It fits more to the fluidic or low-fluidity materials, like milkk powder, pharmaceuticals, condiments,
solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
1. Stainless steel structure; The split hopper could be washed easily without tools.
2. Servo motor drive screw.
3. PLC, Touch screen and weighing module control.
4. The handwheel make the exchange of different fillings to be easliy.
5. Settled screw setup make no metal pollution in producing.
6. Replacing the auger parts, it is suitable for material from super thin powder to granule.
7. Any one filling head conk out couldn't affect the machine running as usual.
8.To save all product’s parameter formula for later use, save 10 sets at most.
Working position | 2 lines + 2 filler |
Filling weight | 1 - 2000g |
Filling Accuracy | ≤ 100g, ≤±1.5%；100 – 500g, ≤±1%;500 – 2000g, ≤±0.5% |
Filling Speed | 50 – 70 bottles per min |
Power Supply | 3P AC208-415V 50/60Hz |
Air Supply | 6 kg/cm2 0.05m3/min |
Total power | 2.6Kw |
Total Weight | 400kg |
Overall Dimensions | 2000*1050*2030mm |
Hopper Volume | 85L |
