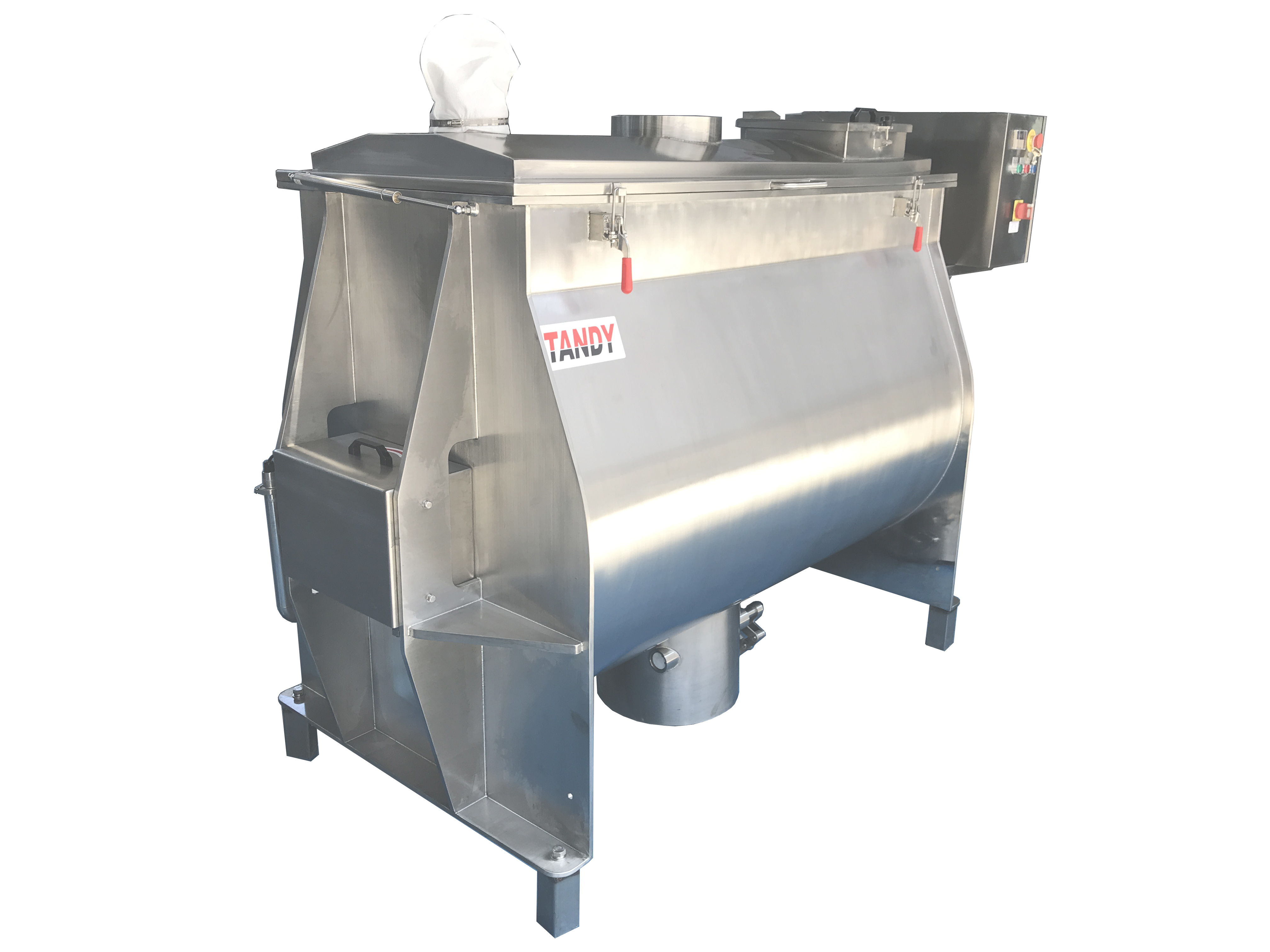

Single shaft paddle mixer
The single shaft paddle mixer is applied to mix powders & powders, granules & granules, also can be
adding a little liquid. It is widely application in mixing nuts, beans, feeds and other kinds of granule

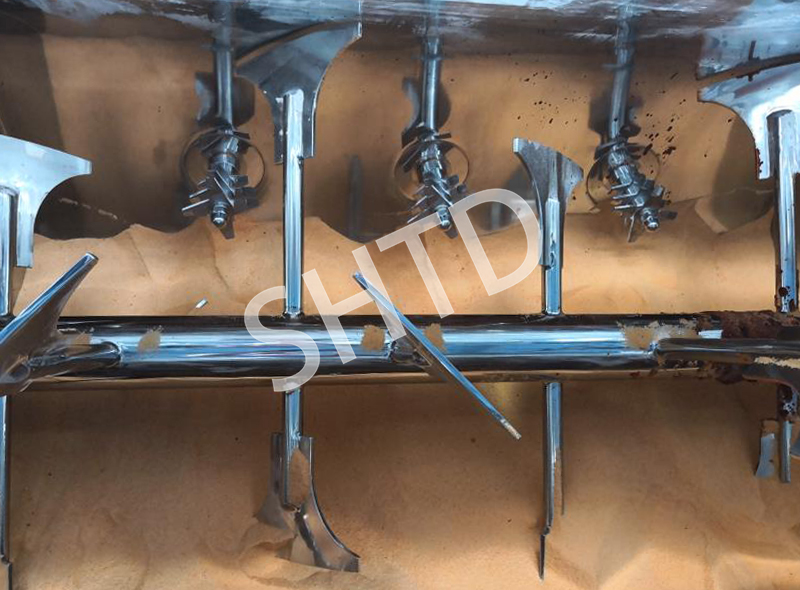

materials. There are different angle paddles which will throw the materials to mixing cross.
(1).The paddles of different direction drive materials to throw in different angles, mixing time approx. 3 to 5 minutes.
(2).The rotating paddles will be filled with chamber with compact design, mixing evenness will be up to 99%
(3).There is only 2-5mm gap between paddle and chamber, discharging outlet in open-type.
(4). Patent design, be sure the rotating shaft and discharging outlet without leakage.
(5). All with polishing process in the chamber, there is no any fastening pc such as nut…
(6). Full stainless steel construct except bearing parts, very elegant and generous.
Model no. | TDL-200 | TDL-300 | TDL-500 | TDL-1000 | TDL-1500 | TDL-2000 | TDL-3000 |
Effective Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L | 3000L |
Rotate Speed | Customized or to be confirm | ||||||
Total Power | Customized or to be confirm | ||||||
Total Dimension | As per final drawing | ||||||
Power Supply | 3P AC208-415V 50/60Hz | ||||||
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
Tandy machinery manufactures mixing
equipments, packaging equipments, conveying
equipments, checking weighers, industrial dust
collectors, batching systems. Many customers
use and recognize our products. It is with CE certification.
